Hard Drive Mobile Rack For 3.5 Inch 1" Height or 1.62" Height H.D.D.

JDR PART # RH10 IDE Ultra ATA 33 / 66 / 100/ 133 For both 5400 & 7200RPM Drives frame + inner cassette Depth = 8 3/8" Width = 5 3/4" Height = 1 5/8"

JDR PART # RH10C Extra inner cassette for RH10 Depth = 7 1/2" Width = 4 1/2" Height = 1 1/2"

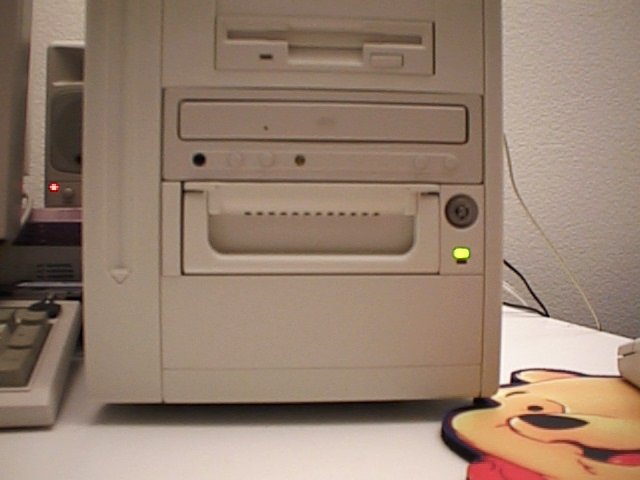

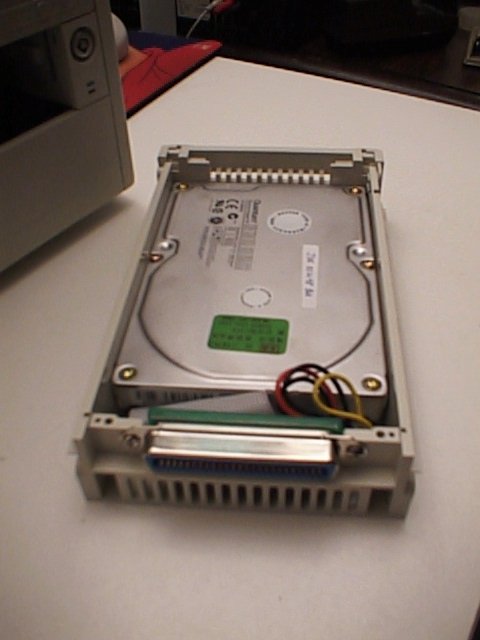

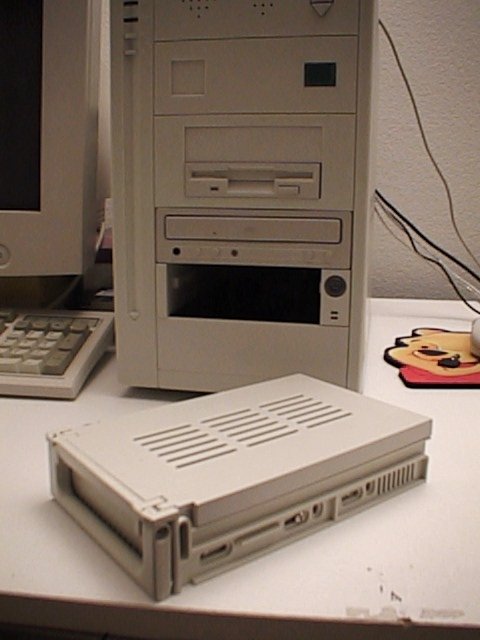

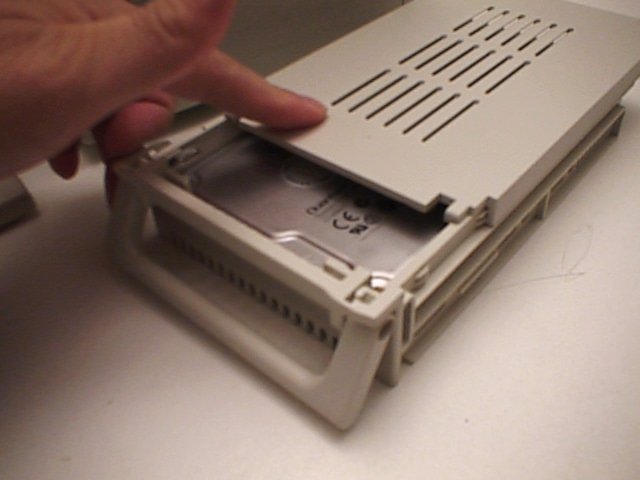

Close-up Pictures

		Close-up picture 1 Close-up picture 2 Close-up picture 3 Close-up picture 4 Close-up picture 5 Close-up picture 6
Close-up picture 7 Close-up picture 8 Close-up picture 9

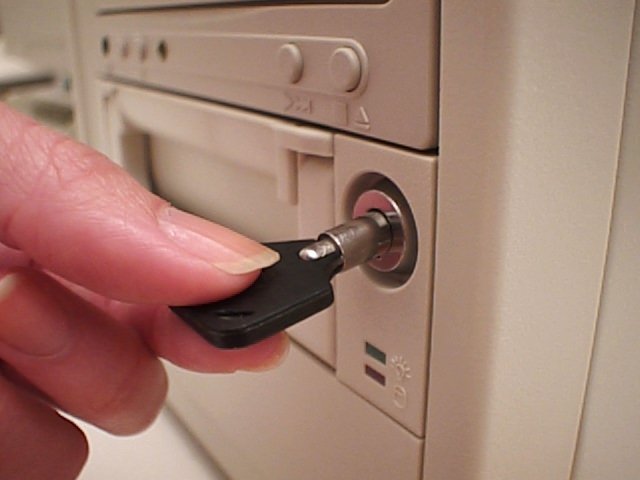

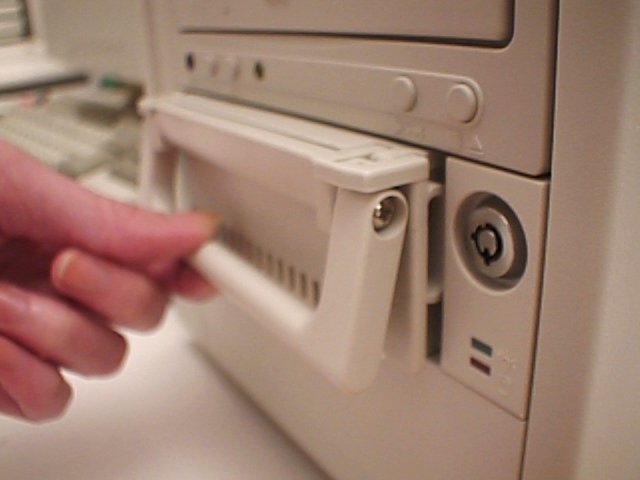

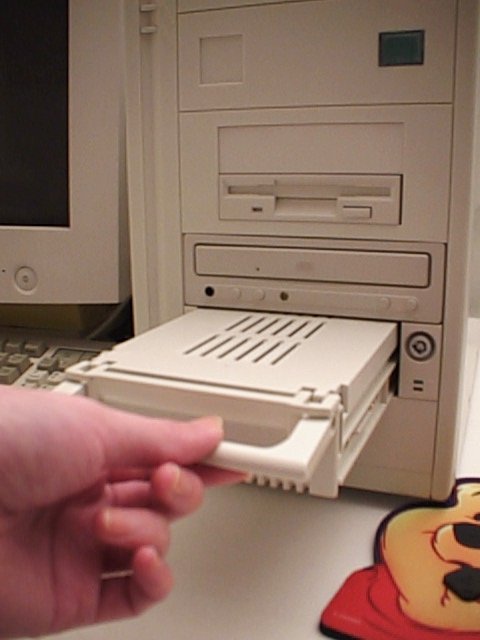

Unlock-pull-slide out !

Benefits

If your computer has one mobile rack:
1. You can pull out your HD from the computer and take it away with
you for maximum data security.
2. Multiple users can share the same computer with complete privacy-
Each user can operate the computer with his/her own H.D. Additional mobile rack cassette can be purchased for under $16.00.
3. Easy future HD upgrade. You can swap HD in-and-out of the cassette
in less than 2 minutes.
4. Multiple O.S. usage by having multiple cassettes (multiple HD).

If your computer has two mobile rack:
You can do all the above plus
1. Back up your primary HD to a secondary HD. The secondary
HD can be inserted into its frame only when you want
backup to be performed. Therefore, the secondary HD is
hardly used which ensures virtually no chance of having both
HD going down on you. With the speed and low price of IDE
HD, there is no need to purchase any other slow and
expensive backup device !!
2. Instant HD capacity increase without worrying about
transferring data out of the original HD. Simply add another
HD. to the secondary HD cassette.

STRUCTURE
		1.Outer Frame (Receiver Frame) 2.Inner cassette (Driver Carrier) 3.Function Active Handle 4.Top Cover 5.Bottom Cover 6.In-PCB 7.Out-PCB 8.Key Lock Set 9.Directing LEDS 10.Auto Door Set
